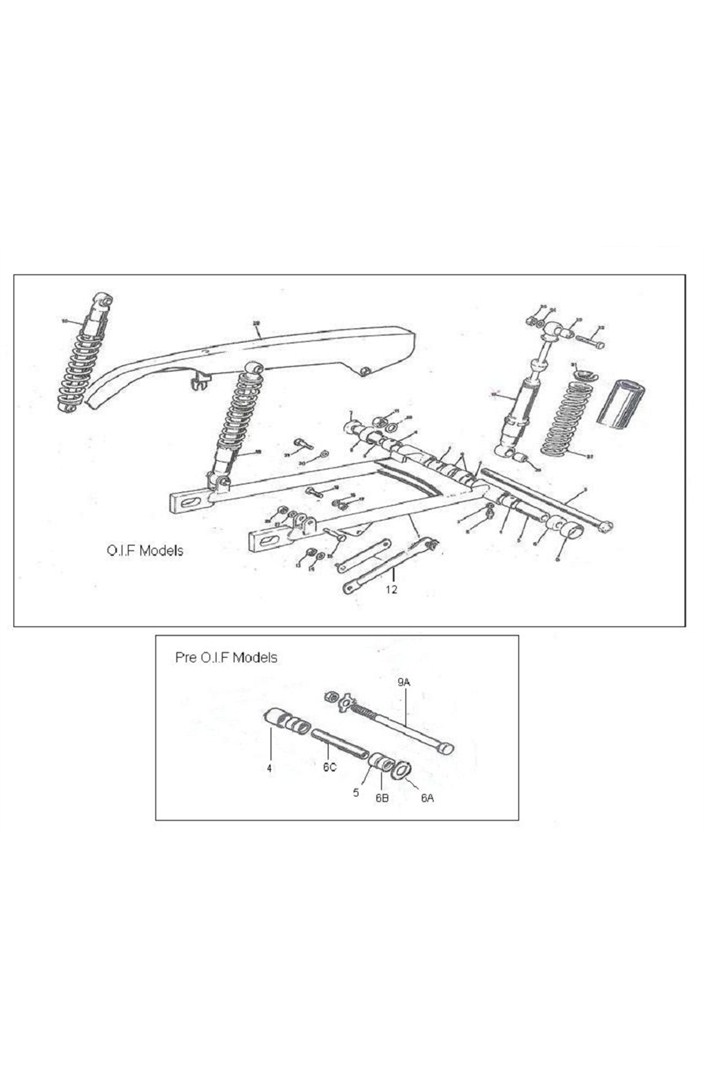

TRIUMPH > SWINGING ARM AND SUSPENSION

Plate No.

Part No.

Product

Stock
Available

Secondhand
Available

Price

[ 1 ] 83-7035 SWINGING ARM O.I.F 0 Y $194.85Each

[ 1 ] 83-0045 SWINGING ARM 650 0 Y $194.85Each

[ 2 ] 60-1841 GREASE NIPPLE. 1.000 $4.15Each

[ 2 ] 60-7336 GREASE NIPPLE 1/4 BSF 45 DEGREE 15.000 $4.05Each

[ 2 ] WE170 GREASE NIPPLE 5.000 $4.15Each

[ 4 ] 83-2521 BUSH, SWING ARM O.I.F NEED FOUR 2.000 $8.00Each

[ 4 ] 82-3690 BUSH, SWING ARM PRE/U 11.000 $18.00Each

[ 5 ] 82-3564 PIN - SWINGING ARM PRE UNIT 1.000 $64.40Each

[ 5 ] 82-6821 BOBBIN SWINGING ARM TRIUMPH 3.000 $18.00Each

[ 5 ] 83-2691 SLEEVE, SWINGING ARM BOBBIN O.I.F 4.000 $19.00Each

[ 6c ] 82-5313 SWING ARM SPACER 650 14.000 $17.45Each

[ 6a ] 82-7848 END CAP, SWING ARM (PRE O.I.F) 0 $6.35Each

[ 6 ] 83-2690 DISTANCE PIECE R. H. 2.000 $9.20Each

[ 6b ] 82-8090 END CAP 'O' RING (PRE O.I.F) 8.000 $2.00Each

[ 7 ] 83-2689 DISTANCE PIECE L. H. 4.000 $8.40Each

[ 8 ] 83-2692 DIRT EXCLUDER NEED FOUR 0 $4.00Each

[ 9a ] 21-620 PIVOT BOLT - SWINGING ARM EARLY (PRE O.I.F) 2.000 $35.20Each

[ 9a ] 82-6150 PIVOT BOLT - SWINGING ARM LATE (PRE O.I 4.000 $35.20Each

[ 9 ] 21-2087 PIVOT BOLT - SWINGING ARM 2.000 $36.00Each

[ 10 ] 83-2266 WASHER (WHEEL SPINDLE) 0 $1.70Each

[ 12 ] 83-7534 BRAKE TORQUE STAY (HIGH CALIPER) 83-7423 3.000 $45.00Each

[ 12 ] 83-7028 BRAKE TORQUE STAY (LOW CALIPER) 2.000 $25.60Each

[ 12 ] 83-2656 BRAKE TORQUE ARM 1.000 $18.20Each

[ 15 ] 21-7004 BOLT, TORQUE STAY TO SWINGING ARM 0 $4.10Each

[ 18 ] 60-3957NG REAR SHOCKS/ SUSPENSION UNIT 12.4IN (NO COVERS) OIF PAIR 100LBS 0 $190.00Pair

[ 18a ] 9054/SET SUSPENSION UNIT COVERS (SET OF 4) 3.000 $88.70Each

[ 18 ] 60-2023NG REAR SHOCKS 12.9" SHROUDED PAIR 2.000 $220.00Pair

[ 18 ] 60-3957 REAR SHOCKS/SUSPENSION UNIT O.I.F 12.4IN (HAGON) PAIR 0 $420.00Each

[ 18 ] 60-2023 REAR SHOCKS/SUSPENSION UNIT 650 (HAGON) NO COVER PAIR 0 $402.50Each

[ 20 ] 99-0122 RUBBER SUSPENSION UNIT BUSH 19-7486 12.000 $19.00Each

[ 21 ] 99-0107 SPRING RETAINER GIRLING 9054/171(EACH) S/S 14.000 $13.00Each

[ 22 ] 99-1048 SPRING, PAIR 5.000 $87.40Pair

[ 23 ] 14-0235 BOLT, DAMPER - TOP 0 $2.30Each

[ 26 ] 14-0234 BOLT, DAMPER, LOWER 0 $1.30Each

[ 29 ] 82-3570 CHAIN GUARD TRIUMPH (SWING ARM 1954-55) 1.000 $95.00Each

[ 29 ] 83-2641 CHAIN GUARD T140 O.I.F BLACK GLOSS 0 $285.00Each

[ 29 ] 83-2641C CHAIN GUARD T140 O.I.F CHROME 0 $155.40Each

[ 29 ] 57-766 CHAIN GUARD TRIUMPH (RIGID FRAME) 0 $102.50Each

[ 31 ] 14-0206 BOLT, CHAIN GUARD FIXING FRONT 4.000 $1.85Each

[ 47 ] 82-7774 DISTANCE PIECE R/H S/ARM T100 3.000 $5.80Each

n/a 82-9387 BOLT STEPPED FOR CHAIN GUARD 14.000 $6.00Each

n/a 82-5536 GROMMET CHAINGUARD (BLANK) 3.000 $6.90Each

n/a 82-5944 TAB WASHER TRUMPHI S/ARM 16.000 $2.00Each

n/a 82-0969 ADJUSTER CHAIN TRI RIGID 3.000 $12.20Each

n/a 60-2023S REAR SHOCKS/SUSPENSION UNIT 650 11.9" SHROUDED 110LBS PAIR 0 $195.00Pair

n/a 60-7037 REAR SHOCKS/SUSPENSION UNIT EXPOSED SPRINGS. PAIR 0 $180.00Pair

n/a NT297 NUT PIVOT BOLT S/ARM TRI 4.000 $5.20Each

n/a 60084 REAR SHOCKS 12.9 CROME SPRING PAIR 1.000 $235.00Pair
